Engine : MC07H.35-60
Rear axle ratio: 5.32
Gearbox: HW25712XSTL
Engine Horse Power: 336 HP
Fuel tank (L): 400
Engine : MC07H.35-60
Rear axle ratio: 5.32
Gearbox: HW25712XSTL
Engine Horse Power: 336 HP
Fuel tank (L): 400

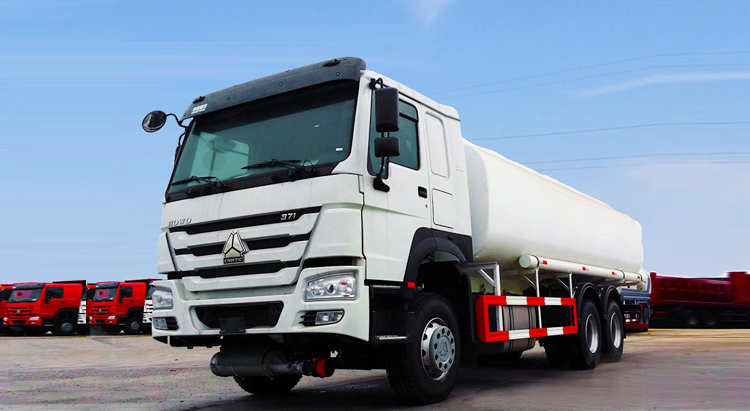

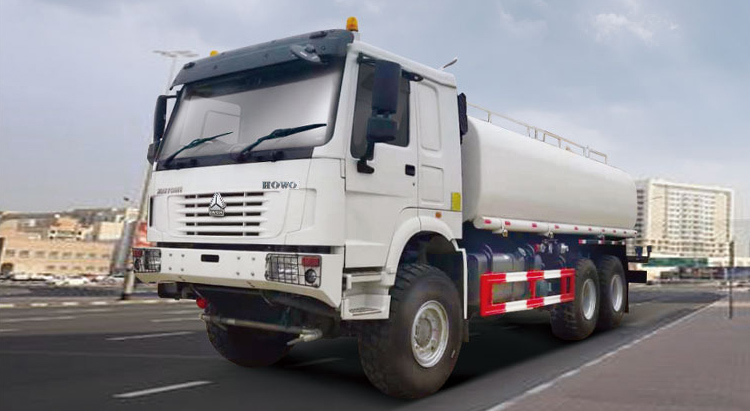

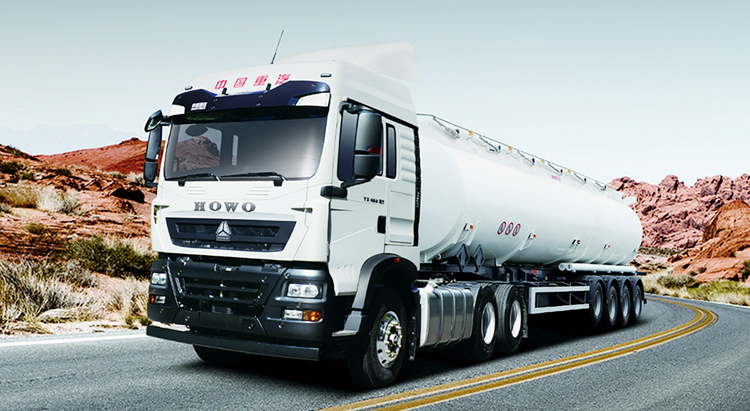

The chassis adopts HOWO TX, Weichai/MAN dual-engine power is optional, 7.5T small-drop front axle (disc); MAT16ZG self-adjusting arm double rear axle (drum), the vehicle is equipped with AEBS+ESC, dual warning and tire blowout emergency safety devices and other safety configurations, the airbag adopts the domestic top design, the minimum ground clearance can reach 300mm, with high reliability, high safety and other characteristics.
The upper body is made of high-quality national standard steel produced by large domestic steel enterprises. The tank body adopts the overall sandblasting, spraying and baking process, which has anti-aging and corrosion resistance. The service life of the tank body is more than ten years. A full set of European standard safety accessories from well-known domestic manufacturers ensures the safety of oil transportation. The oil tank adopts the finite element analysis method to optimize the design and pass the strict reliability test. The oil tank has a large capacity and high transportation efficiency.
| Engine model | MC07H.35-60/WP9H350E62 |
| Gearbox | HW25712XSTL |
| Rear axle model | MAT16ZG self-adjusting double rear axle (drum) |
| Rear axle ratio | 5.32 |
| Fuel tank (L) | 400 |
| Suspension (front and rear air suspension) | 4/4/-/- |
| Tire | 12R22.5 |
| Vehicle parameters | |
| Vehicle model | JYJ5327GRYF1 |
| Dimensions (mm) | 11900×2500×3180 |
| Wheelbase (mm) | 4600 |
| Front overhang and rear overhang (mm) | 1430/2695 |
| Rated maximum total mass (kg) | 18.1 |
| Announcement volume (m³) | 23.8 |
