Trucks All models Semi Trailer Sinotruck Low Bed Semi Trailer Truck

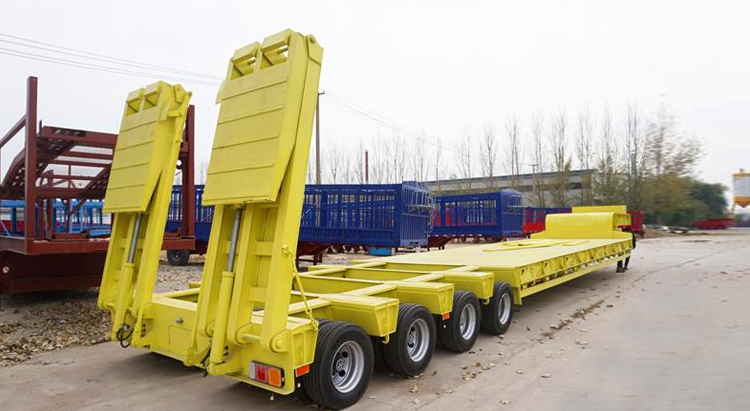

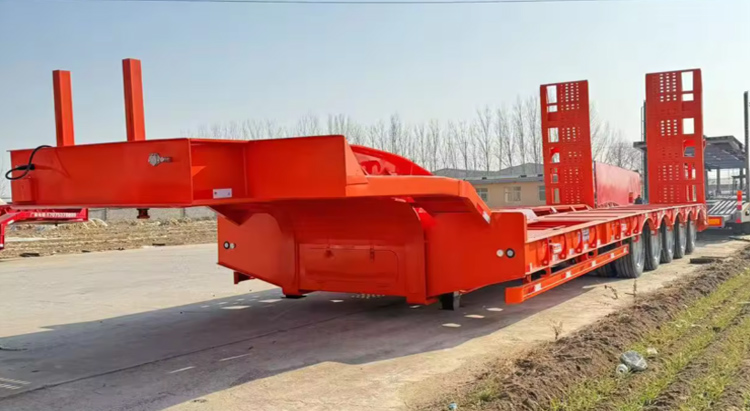

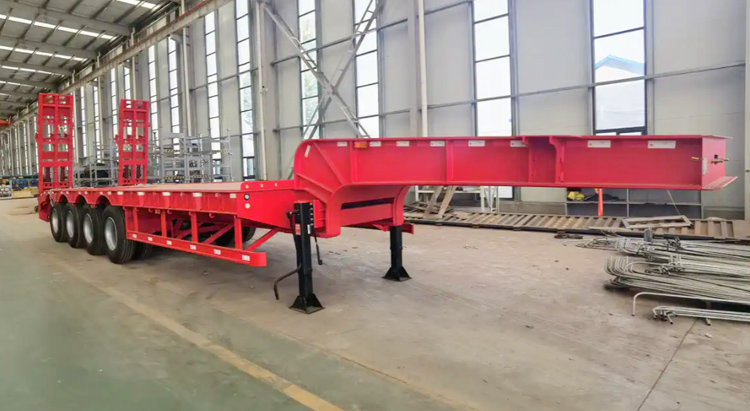

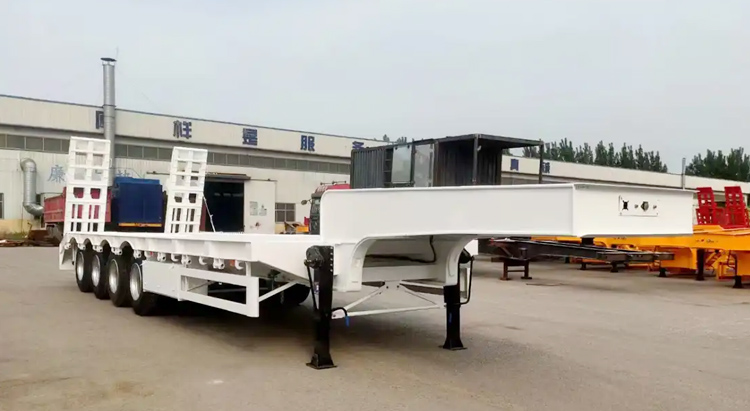

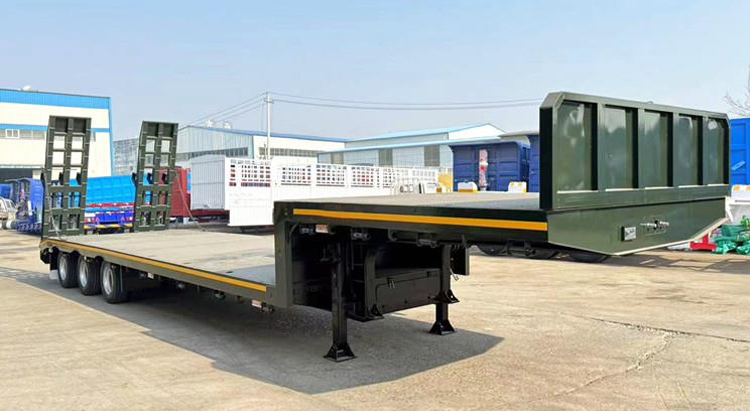

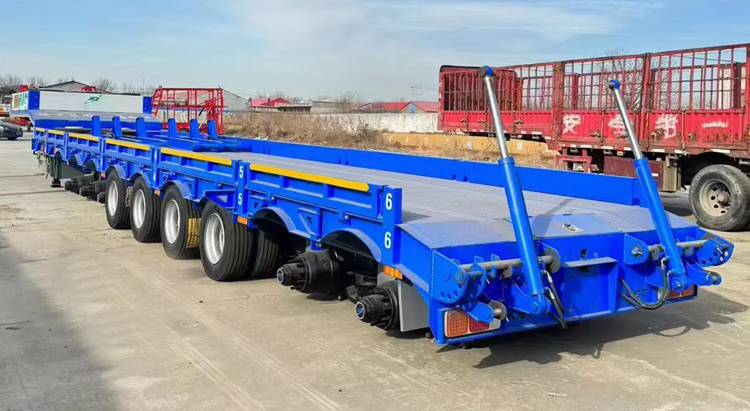

Sinotruck Low Bed Semi Trailer Truck

Sinotruck Low Bed Trailer Truck with a standard load capacity of 80 tons, allowing an overload of 25%. It is suitable for the transportation of large machinery, large ores, but also heavy goods such as steel coils and prefabricated steel frames.

Models

Dimension: 16000*3000*1700mm

Weight (KG): Max.70 tons

Axle: 2/3/4/5/6

King Pin: 90#

Landing Gear: JOST brand

Request a Quote

Product Description

Application

Specially designed for heavy good transportation

Features

Sinotruck Low Bed Trailer Truck offers several advantages for transporting The low bed design of the trailer allows for easy loading and unloading of tall and oversized equipment, such as construction machinery and vehicles, by minimizing the incline angle of the ramp.

The tri-axle configuration of low bed trailer 70tons provides more flexibility in terms of load distribution, making it suitable for a wide range of heavy and oversized cargo.

Overall Dimension(mm)	13000x3000x1700mm
Working Deck Dimension(mm)	9000x3000x1350mm
Platform thickness(mm)	4mm
Main Beam	“H”main beam design,345B carbon steel, the height of the beam is 500mm, upper plate is 16mm,down plate is 18mm,middle plate is 10mm.
Wheelbase	7,650mm+1,310mm+1,310mm
Plyload	60,000kg
Axle	3X13Ton,ZYbrand optional FUWA brand one hundred fifty thousand Kilometers no need maintenance
Tire	1100R20,12pcs Taitong brand
Rim	8.0*22.5 steel disc wheel,10 holes ISO,12pcs
Suspension system	Common Mechanical Suspension
Steel Spring	10/10/10 leaf spring with 90mm(W)*13mm(thickness)
Brake air chamber	6 units T30/30 spring brake chambers
Emergency relay valve	Wabco relay valve
Traction/King Pin	2″and3.5″ removable Kingpin
Landing Gear	28ton
Tool box	1pcs,One crank and ont shaft head wrench
Ramp	Heavy duty trailer ramp
Spare theel carriers	2pcs
bumper	Rear bumper
Electrical system	1.Voltage; 21v 2.Receptacle;7 ways(7 wire hamess)
	Tail lamp with tum signal,brake light&reflector,side lamp etc.
	One set 6-core eletric cable protected by PVC conduit on main farme

Performance

The tri-axle configuration of Sinotruck Low Bed Trailer Truck 70tons provides more flexibility in terms of load distribution, making it suitable for a wide range of heavy and oversized cargo.

Versatile

This trailer is designed to accommodate 20, 40, 45, and 48ft containers, providing flexibility in transporting different sizes of cargo.

Easy Loading and Unloading
