Cabin: HW 76 cab
Engine : WD615.69
Gearbox: 10 Forwards gear & 2 reverse gear
Engine Horse Power: 336 HP
Payload: 13750
Cabin: HW 76 cab
Engine : WD615.69
Gearbox: 10 Forwards gear & 2 reverse gear
Engine Horse Power: 336 HP
Payload: 13750

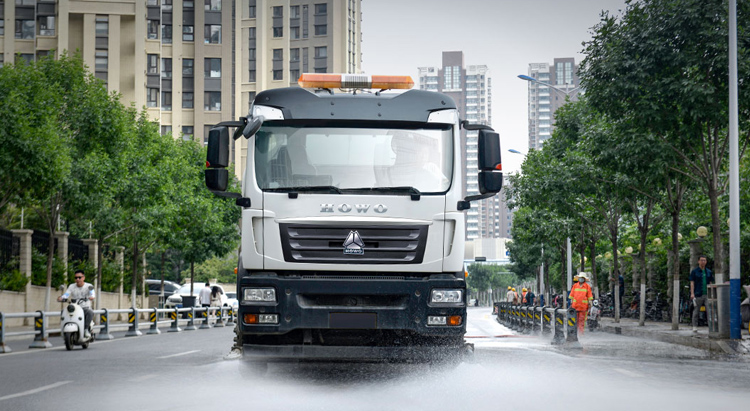

1. Front spray nozzle, wash road surface dust;

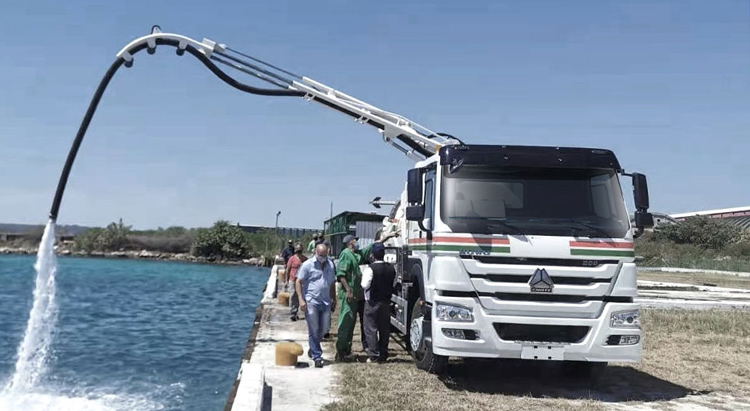

2. Water cannon,360 rotation, spray nozzle can be adjusted to the columnar or the vaporific, suitable forfire protection and irrigation;
3. Fire coupling, cooperate with fire hose, achieve function of emergency fire;
4. Water absorption system, equipped with special waterpump and filter system;
5. Rear and side spray nozzle, cquipped with rearworking platform.
| Cabin |
HW 76 cab, with one bed and air condition, |
|
| 70°hydraulically tillable to the front as attached photo for ref. |
||
| Vehicle Main Dimensions |
Overall dimensions (L x W x H) mm |
11690× 2496× 3300 |
| Wheel base (mm) |
1800+ 4600+ 1350 |
|
| Wheel track ( front/rear) (mm) |
2022/ 1830 |
|
| Approach / Departure angle(°) |
16/19 |
|
| Weight in KGS |
Tare Weight |
14000 （According to the volume ） |
| Payload |
13750 |
|
| Front axles loading capacity |
2×9000 |
|
| Rear axles loading capacity |
2×16000 |
|
| Engine |
Brand |
Sinotruk |
| Model |
WD615.69 |
|
| Type |
4-stroke direct injection , |
|
| 6-cylinder in-line, |
||
| turbo-charging and inter-cooling |
||
| Horse Power （HP) |
336 HP （According to the volume ） |
|
| Emission standard |
Euro2 （Euro3,4 is optional ） |
|
| Gearbox |
10 Forwards gear & 2 reverse gear |
|
| Steering |
power steering ZF8098 from Germany |
|
| Tire |
12.00-20 bias tyre （Optional ） |
|
| Optional |
15,000 -25,000 liters, tank thickness is 4 mm, seal is 5 mm |
|
| Equipped with front(rear,side)sprinkler(sprinkling width ＞14m ) |
||
| Equipped with rear working platform with water cannon (range ＞28m) |
||
| Equipped with pump(suction lift ＞6m) |
||
| Equipped with fire valve,water valve,and filter gauze | ||
